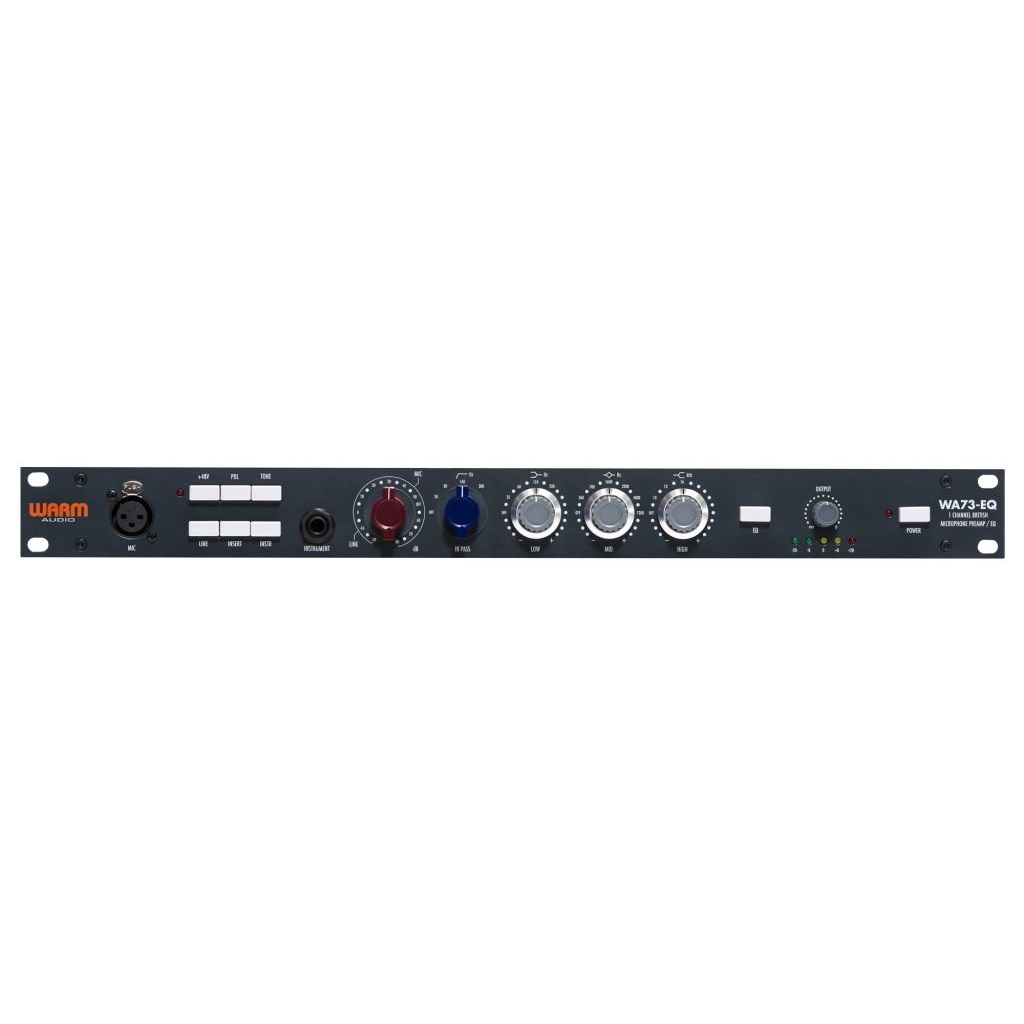

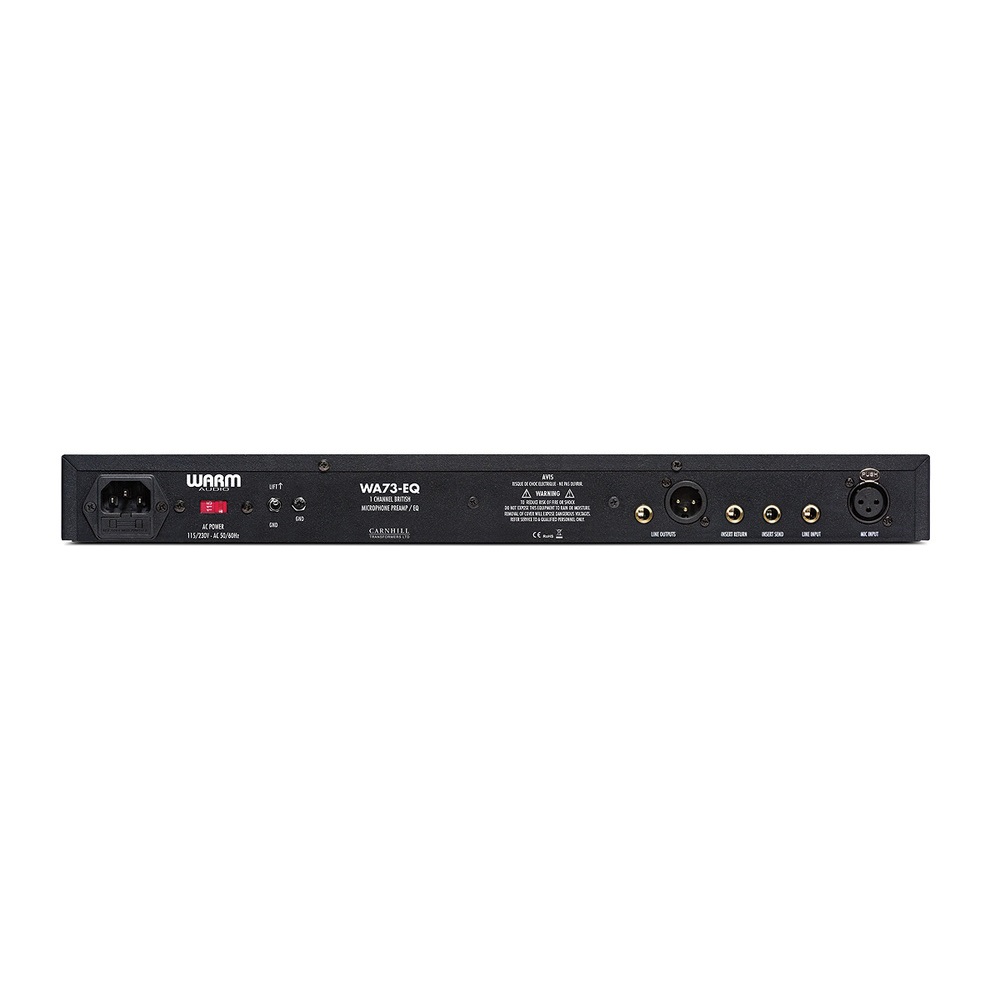

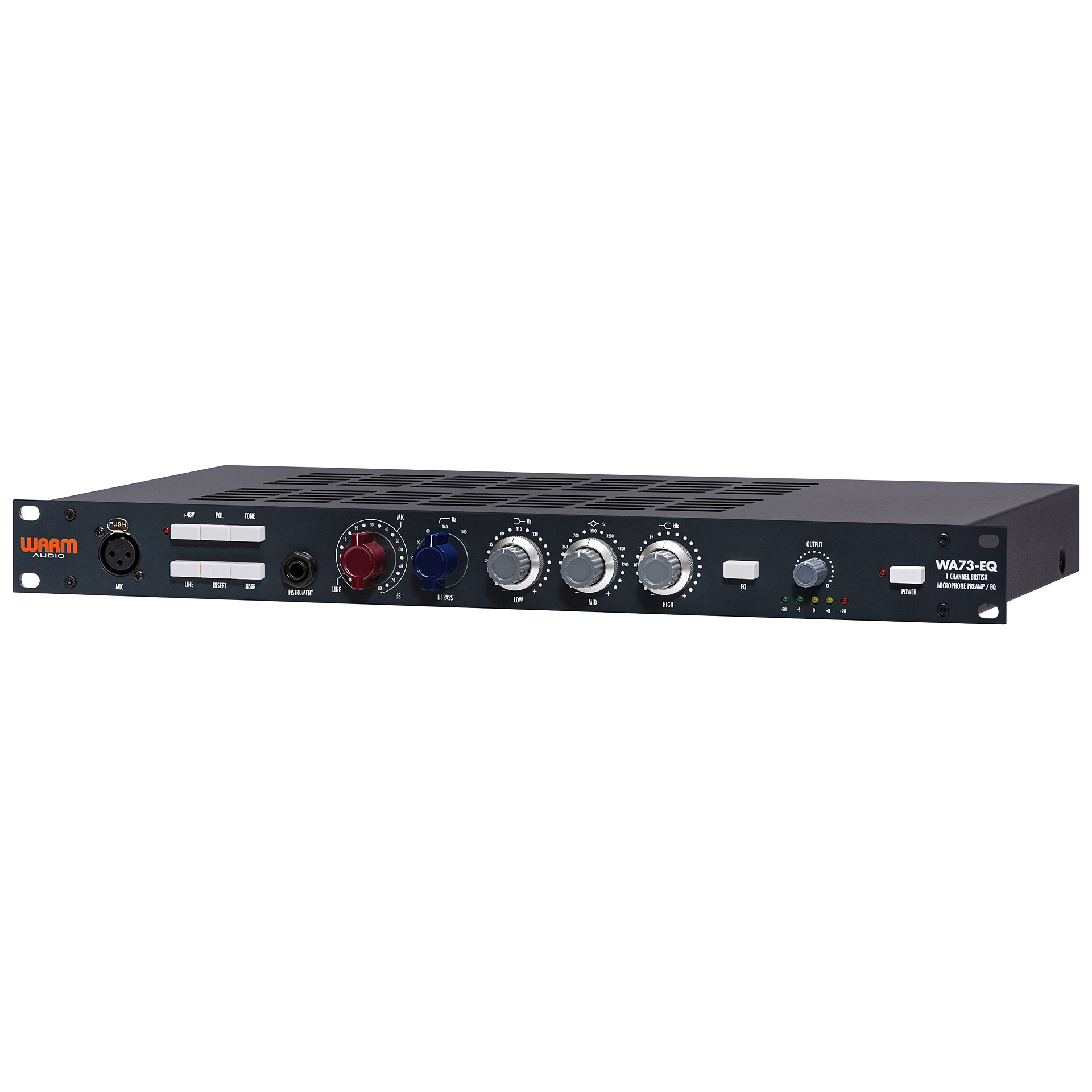

Warm Audio WA73-EQ Single-Channel Microphone Preamplifier and Equalizer

SKU: WA73-EQ
MRP:
₹89,431.00
₹80,488.00
10% Off
Save ₹8,943.00
(Exclusive of all taxes)
The Warm Audio WA73-EQ is a single-channel, Class-A microphone preamp and equalizer designed to provide up to 80 dB of gain and 3-band EQ for engineers, producers, musicians, and vocalists in mobile-recording rigs and home, project, and commercial studios.
Country of Origin: India
More Information
- +
- +
Easy 3 days return.

Description

The WA73-EQ is a �Desert Island� boutique preamp, but it can also be classified as a studio and live work-horse. Classic �73-style preamps are known for being versatile tools that work with all kinds of microphones from Condenser, to Dynamic, to Ribbon. The WA73-EQ equally shines on all types of microphones and sources including; vocals, acoustic/electric guitars, bass, drums, percussion, orchestras, keyboards, and even as a tone shaping tool to run partial or complete mixes through. With 80dB of gain and a fully discrete Carnhill Transformer balanced signal path, there�s no recording, mixing or engineering task that the WA73-EQ can�t handle.

Product Feature's
  • Handwired and hand-assembled, single-channel 1073-style preamp/EQ
  • Fully discrete, Class A, transformer-balanced circuitry
  • UK-made Carnhill Transformers
  • 80dB of gain handles any type of microphone, including low-output ribbons
  • Resistor-stepped rotary gain switch for easy recall
  • Tone button changes input transformer impedance for mic optimization and tonal shaping
  • Polarity switch
  • 48V phantom power
  • 4-position inductor-based highpass filter, selectable for Off, 50, 80, 160, or 300Hz
  • Inductor-based 3-band equalization
  • Low-band boost/cut at 35, 60, 110, or 220Hz
  • Mid-band boost/cut at 360, 700, 1600, 3200, 4800, or 7200Hz
  • High-band boost/cut at 10, 12, or 16kHz
  • Additional high-band frequency EQ points added (compared to vintage 1073)
  • XLR mic input
  • Line-level TRS input
  • TS Send/Receive insert jacks
  • XLR and TRS line-level outputs
  • DI instrument input
  • Output level control
  • LED level indication meter
  • Rugged 19? rackmount chassis
  • Ground lift switch
  • Internal IEC 115V/230V power inlet
