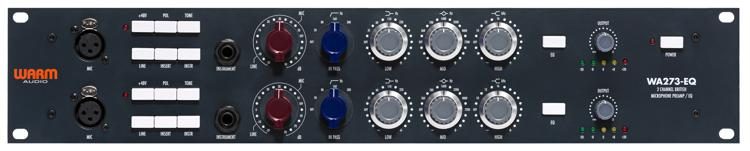

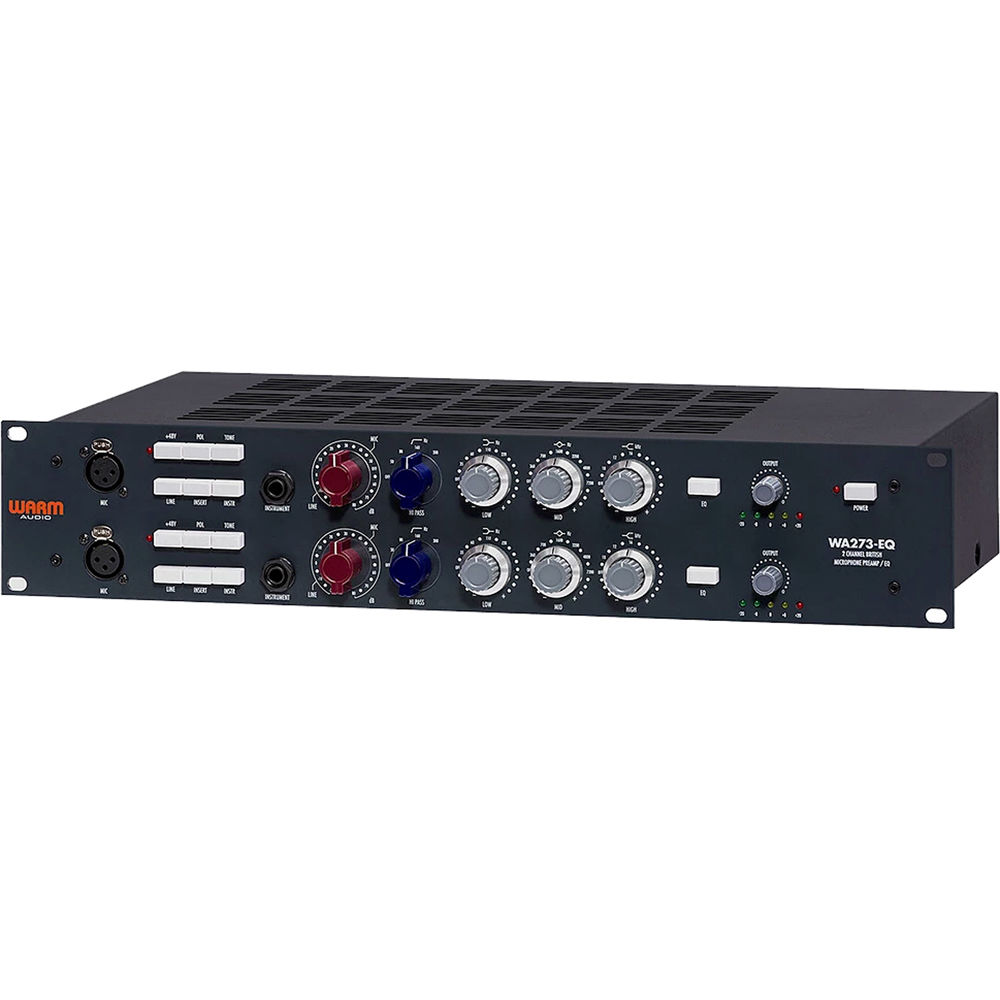

Warm Audio WA273-EQ 2-channel Microphone Preamp & EQ

SKU: WA273
MRP:
₹182,055.00
₹163,850.00
10% Off
Save ₹18,205.00
(Exclusive of all taxes)
THIS ITEM IS AVAILABLE ON SPECIAL ORDERS ONLY. REQUESTING YOU TO KINDLY CHECK AVAILABILITY WITH US BEFORE ORDERING
Country of Origin: India
More Information
- +
- +
Easy 3 days return.

Description

The legendary 1073 wrote the book on characterful mic preamplification and EQ. These venerable circuits helped define the punchy sound of '70s rock � and countless recordings and live concerts ever since. Today, this coveted tone can be yours for a song, with the Warm Audio WA273-EQ mic/line/instrument preamp. In both design and performance, the 2-channel WA273-EQ pays homage to the revered British console lineage that started it all. Throughout the audio industry, the 1073 is considered the holy grail of preamps and EQs, with a rich, sweet, and bold tonality that's ideal for making audacious statements with your music. After years of R&D, painstaking reverse-engineering, and countless hours of listening, Warm Audio captured the sonic essence of this classic perfectly in their boutique WA273-EQ. With 80dB of gain and a fully discrete transformer-balanced signal path, the sound is a revelation: harmonically rich bottom end, focused midrange, and slightly resonant highs.


Warm Audio WA273-EQ 2-channel Mic/Line/Instrument Preamp and EQ Features:

  • Handwired, hand-assembled 1073-style preamplifier/EQ
  • Fully discrete, Class A, transformer-balanced circuitry
  • UK-made Carnhill Transformers
  • 80dB of gain handles any type of microphone, including low-output ribbons
  • Resistor-stepped rotary gain switches for easy recall
  • Tone buttons change input transformer impedance for mic optimization and tonal shaping
  • Polarity switches
  • 48V phantom power
  • 4-position inductor-based highpass filters, selectable for Off, 50, 80, 160, or 300Hz
  • Inductor-based 3-band equalization per-channel
  • Low-band boost/cut at 35, 60, 110, or 220Hz
  • Mid-band boost/cut at 360, 700, 1600, 3200, 4800, or 7200Hz
  • High-band boost/cut at 10, 12, or 16kHz
  • Additional high-band frequency EQ points added (compared to vintage 1073)
  • XLR mic inputs
  • Line-level TRS inputs
  • TS Send/Receive insert jacks
  • XLR and TRS line-level outputs
  • DI instrument inputs
  • Output level controls
  • LED level indication meters
  • Rugged 19" rackmount chassis
  • Ground lift switch
  • Internal IEC 115V/230V power inlet
