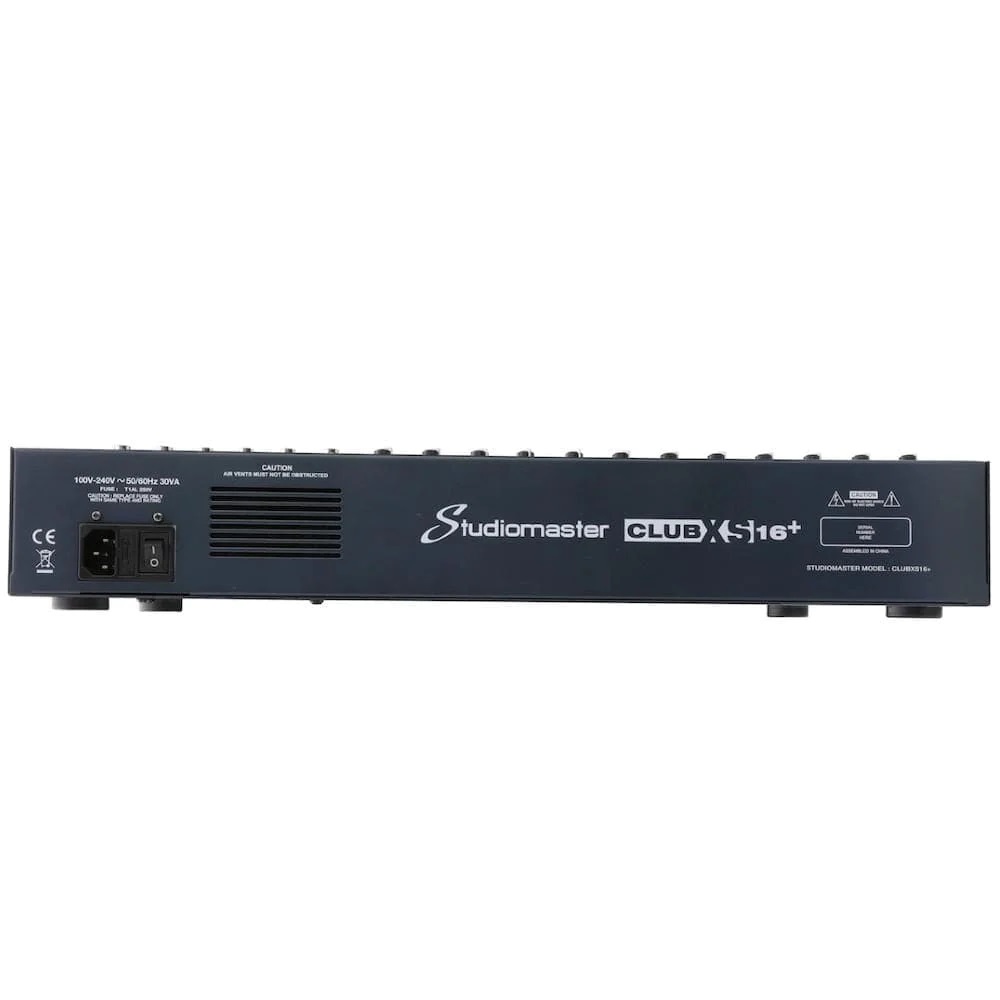

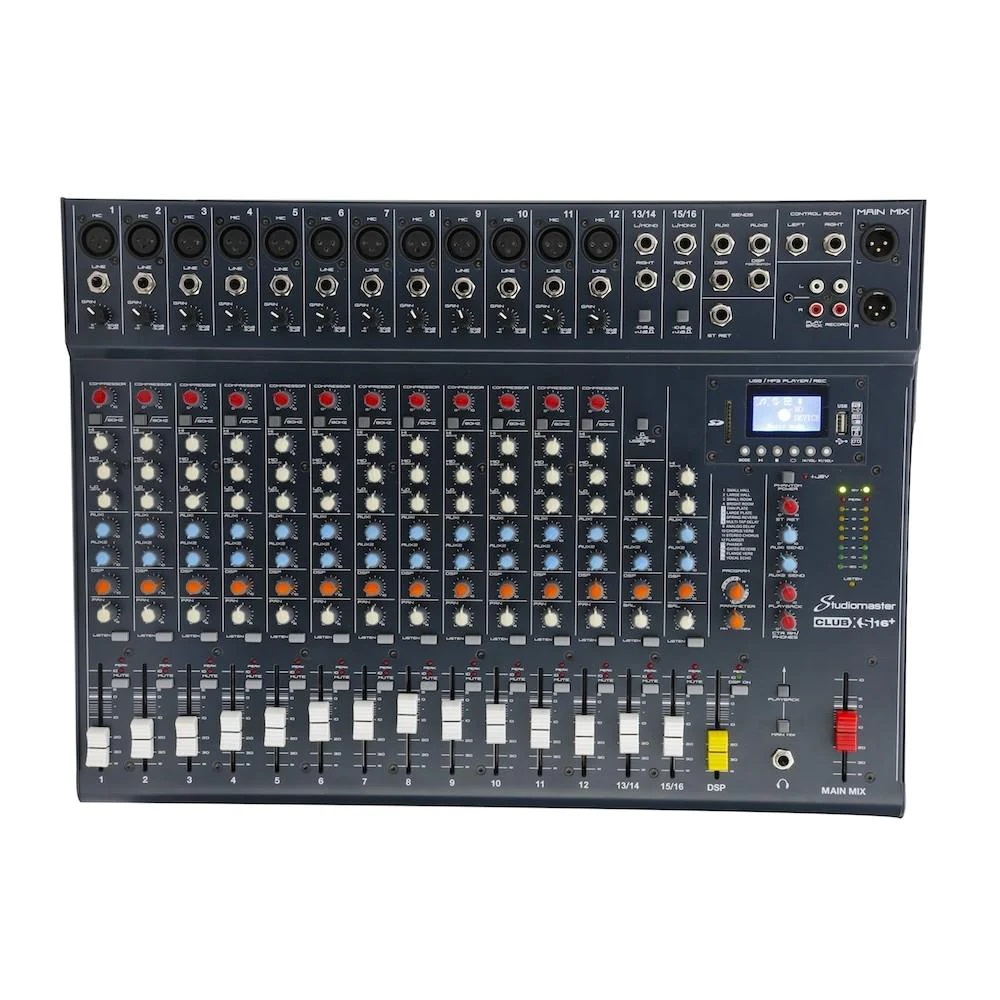

Studiomaster Club XS 16+ 16 Input Channel Analog Mixer

Description

3 band EQ, 2 auxiliaries, balanced mic/line connectors, compressor control, and a useful mute switch on all Mic and line input channels, and 2 band EQ with 2 auxiliaries for both stereo channels. There are also balanced XLR connectors for the main outputs, jack outputs for auxiliaries and control room, and phono connectors for record and playback.

Studiomaster Club XS 16+ 16 Input Channel Analog Mixer Features:

• 16 inputs
• 12 mic channels
• 2 stereo channels
• 2 AUX sends
• 16 DSP effects
• Foot switch socket for DSP
• PFL�s on all channels
• Bluetooth
• USB/SD media player

Studiomaster Club XS 16+ 16 Input Channel Analog Mixer Specifications:

• Inputs: 16
• Mic Inputs: 12
• Stereo Inputs: 2
• Mic Gain Range: 6dB to 50dB
• Line Gain Range: 10dB to 34dB
• EIN: -100dB
• Frequency Responce: 10Hz � 20kHz (+1/-3dB)
• THD Mic Channel: <0.1%
• Signal to Noise Ratio: 80dB
• Output Levels: Max +26dB (Bal), +20dB (unBal)
• EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
• USB/SD: MP3 Audio playback
• Record: To USB drive or SD card (128kbps mono)
• DSP Effects: 16 DSP effects
• Power Requirements: 100V � 240V ~
• Dimension W*D*H: 385 x 527 x 85 (mm)
