Description
There are four models in the new TS3 range: The TS308, TS310, TS312 and TS315, with 8-10-12- and 15-inch woofers respectively. The range shares a new 2000-watt peak (1000-watt continuous) amplifier, a significant advance over the 1100-watt peak (550-watt continuous) amplifiers in the TS2.
The four models boast all-new low-frequency drivers, designed to play louder and handle more power than their already-impressive predecessors, the wildly-successful TS2 Series. They also have a new horn-loaded high-frequency driver. This impressive transducer has a brand-new heat sink design that provides exceptional heat dissipation for impressive power-handling, even at all-night-long concert levels. Because these new drivers can safely handle the additional power, the TS3�s take full advantage of the increased wattage and will play at higher SPLs with lower distortion.
We�ve even made the TS3�s easier to use, with an updated control panel and clearer control indications and detents that make for a faster, more precise setup.
2000 watts of bi-amplified power, newly-designed drivers and easier, more satisfying controls and setup�the new TS3 range doesn�t merely meet your requirements. It makes you re-think what�s possible.
TECH INFORMATION
- Output Power: 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)
- LF Driver: 8-inch (203 mm) LF driver, 2.5-inch (65 mm) high-temperature voice coil
- HF Driver: 1.4-inch (35 mm) neodymium magnet HF driver with precision waveguide
- Crossover: 2.5 kHz
- Maximum SPL: 129 dB peak, 126 dB continuous (dB SPL @ 1 m)
- Frequency Response: 62 Hz � 20 kHz (+ 3 dB)
- Frequency Range: 52 Hz � 22 kHz (-10 dB)
- Horn Coverage: 90� H x 60� V nominal
- Equalization: Contour Switch Low and High Frequency +3dB Boost

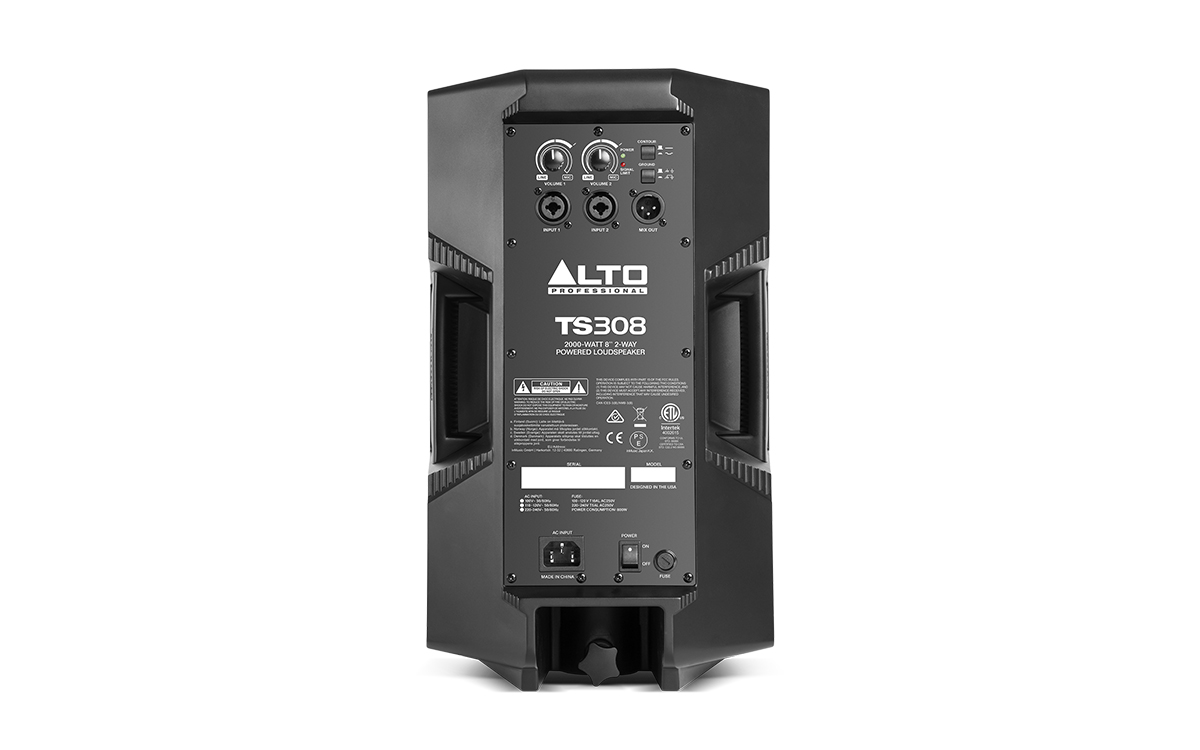

- Connectors: (2) XLR/TRS 1/4� (6.35 mm) combo inputs, (1) XLR link output, (1) IEC power cable input
- Controls: (2) Volume, Power on/off switch, Contour switch, Ground-Lift switch
- Indicators: 2 x Power LED (front and rear), Clip limiter LED
- Protection: Electronic clip, Thermal and transducer overdrive protection
- Power Connection: IEC with Mains Fuse
- AC Voltage Input: 100,110-120,220�240 V, 50/60 Hz

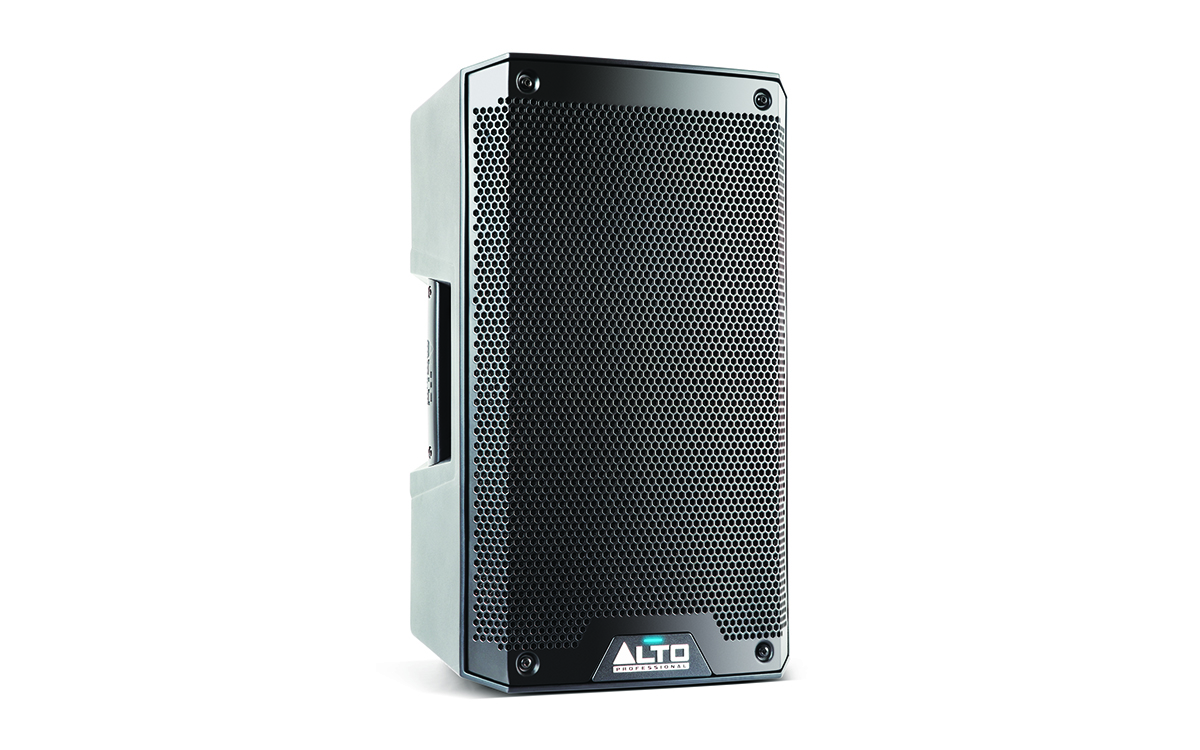

- Enclosure: Trapezoidal, injection-molded, polypropylene enclosure, with perforated steel grille
- Mounting/Installation: 36 mm standard pole mount, Wall or celling mount using TSB810 bracket, Flown application with integral M6 suspension points, Wedge monitor
- Dimensions: (H x W x D): 17.1� x 10.1� x 9.6� / 434mm x 256mm x 245mm
- Net Weight: 20.2 lbs. / 9.2 kg.
- Design Origin: Designed and tuned in the USA
